Can you use an extension or universal joint on an impact wrench?
Yes, as long as the extension, adapter or universal joint is impact-rated: chrome-molybdenum steel, a black finish, made for a machine-driven tool. The catch is torque. Every piece between the gun and the socket takes some of each blow, so use the shortest extension that reaches, the fewest pieces possible, and keep a universal joint as straight as the job allows.
This follows on from Can you use chrome sockets on an impact wrench? The same rule applies to everything behind the socket. A chrome hand-tool extension or joint on a gun is the same risk as a chrome socket: hard, brittle steel taking hammer blows it was never made for.
Why an extension costs you torque
An impact wrench does not push steadily. It hits the anvil in short, sharp blows, and each blow has to travel down the socket train to the nut. A steel bar twists slightly under a sudden load and springs back. The twist soaks up part of the blow, and the nut gets what is left.
Torque sticks prove the point. A torque-limiting extension is an extension deliberately made thin enough to twist. Wayne Scraba describes them in OnAllCylinders:
"acts as a torsion device by flexing once a certain amount of torque is applied to the fastener as it is tightened." — Wayne Scraba, OnAllCylinders
An ordinary extension is stiffer, so it flexes less, but it works the same way. Longer and thinner means more twist and less at the nut. Every joint in the train also adds a little play that each blow has to take up. In practice:
- Pick the shortest extension that clears. A 3" or 5" bar on a 1/2" gun costs less torque than a 10".
- Do not stack. One long extension beats two short ones joined, and neither beats a deep socket if a deep socket reaches.
- Stay on the gun's own drive size. Stepping a 3/4" gun down to 1/2" through an adapter puts the full blow of the bigger gun through the smaller parts. The original post makes the same point about sockets.
- If a nut will not come off with an extension on, take the extension off if you can, or move up a drive size.
Universal joints: impact-rated, and keep the angle small
A universal joint is where torque loss and breakage both get worse. At an angle, part of each blow goes into bending the joint rather than turning the nut. SlashGear notes that a universal joint affects torque in a way an extension does not, because it changes the geometry between the handle and the nut.
Two rules cover most jobs:

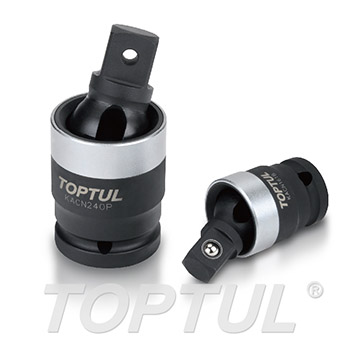

- Use an impact joint, never a hand one. Toptul's KACN impact joints are Cr-Mo, black phosphate and made to DIN 3121, ISO 1174 and ASME B107.110. Toptul's specification gives them 30 degrees of flex. Its hand-tool joints, the CAHA and CAHK series, are for ratchets and breaker bars, not guns.
- Use the least angle that reaches. The straighter the joint runs, the more of each blow gets through.
Where there is room for only one piece, an impact universal socket (Toptul's KABG series) puts the joint and the socket in one part. That is one connection fewer and a shorter train than a joint plus a separate socket.
What to buy for each drive size
Match the parts to the square drive on your gun. The lengths below are from Toptul's product pages.
| Gun drive | Impact extensions (KACE) | Quick-release (KACB) | Impact universal joint (KACN) |
|---|---|---|---|
| 3/8" | KACE1203 (3"), KACE1206 (6") | – | KACN120B |
| 1/2" | KACE1603 (3"), KACE1605 (5"), KACE1610 (10") | KACB1603, KACB1605, KACB1610 | KACN160B, KACN161B |
| 3/4" | KACE2404 (4") to KACE2413 (13") | KACB2407, KACB2413 | KACN240P |
| 1" | KACE3207 (7") to KACE3216 (16") | KACB3207, KACB3213 | KACN320P |
For most bays, the one piece worth buying first is a short extension in the gun's own drive: a 3" or 5" on a 1/2" gun, a 7" on a 3/4" or 1". It reaches most recessed wheel nuts and costs the least torque. Add a joint only when a job needs one.
Final torque still belongs to a calibrated torque wrench, not the gun, with or without an extension. Run the nut down with the impact, then set it by hand.
Find the Toptul KACE impact extensions and KACN impact universal joints in the Vesprr Tools catalogue, or ask Vesprr Tools for a length or drive size not listed.
Sources
- TOPTUL, Impact Extension Bar (KACE series), product page.
- TOPTUL, Impact Extension Bar with Quick Release (KACB series), product page.
- TOPTUL, Impact Universal Joint (KACN series), product page.
- Wayne Scraba, The Right Torque: Torque-Limiting Extensions Explained, OnAllCylinders, 18 December 2024.
- Nate Williams, Do Extensions On Socket Wrenches Increase Torque?, SlashGear, 13 May 2025.
