Can you use chrome sockets on an impact wrench?

Amir Khan

No. A chrome hand socket is made to be hard, and hard steel is brittle under the hammer blows an impact wrench delivers. It can crack or shatter at the nut. Use an impact socket: chrome-molybdenum (Cr-Mo) steel, a black finish, and the same square drive as your gun.

That is the whole rule. The rest of this page helps you tell the two apart on the bench and pick the right impact set for the drive size you run.

Why a chrome socket can break on an impact gun

A ratchet or breaker bar loads a socket steadily. An impact wrench hits it dozens of times a second. Those are two different jobs, and the steel is chosen for one or the other.

Hand sockets are usually chrome-vanadium (Cr-V), heat-treated for hardness so the corners do not wear and the walls can stay thin. Impact sockets are usually chrome-molybdenum, tempered for toughness: the ability to take a sudden shock without cracking. Teng Tools puts the trade-off plainly:

"Push hardness too far and you get a brittle part that snaps under an impact wrench."
— Teng Tools USA, Chrome Moly vs Chrome Vanadium

The two kinds are covered by separate international standards. ISO 2725-1 covers hand-operated sockets. ISO 2725-2 covers machine-operated "impact" sockets and sets their dimensions, marking, hardness and minimum torsional strength. A chrome socket that happens to fit your gun was never tested against the second standard.

A chrome socket may survive a few wheel nuts. The damage is fatigue: small cracks grow with each blow until one lets go, often with no warning. When it fails, pieces can fly. The saving from using the socket you already own is not worth that.

The reverse is fine. An impact socket works on a ratchet or a torque wrench. It is thicker and heavier, and the Cr-Mo corners can wear a little sooner under hand use, but it will not break.

How to tell an impact socket at a glance

Check three things before a socket goes on the gun:

  • Finish. Impact sockets are black: phosphate or black oxide. A mirror-bright chrome finish means a hand socket. Teng Tools warns that shiny chrome never means impact-safe.
  • Marking. Look for "Cr-Mo", "CR-MO" or "impact" stamped on the body. Toptul marks its impact range CR-MO and finishes it in black phosphate.
  • Wall thickness. For the same nut size, an impact socket has visibly thicker walls than a hand socket.
Toptul GDAD1501CR-MO 15-piece 1/2-inch drive impact socket set in black phosphate finish
Toptul GDAD1501CR-MO: 15 black-phosphate Cr-Mo impact sockets for a 1/2" gun, 10–24 mm.

Which impact socket set fits your gun

Match the socket to the square drive on the gun, not to the nut alone. Do not step a 1" gun down to 1/2" sockets with an adapter for routine work: the adapter and the small socket take the full blow of the bigger gun.

Most workshops run one of three drive sizes. The sizes in each Toptul set below are from Toptul's own product pages.

Gun driveToptul setSizesTypical work
1/2"GDAD1501CR-MO, 15 pc10–24 mmCar wheel nuts, suspension, general bench work
1/2" deepGDAD1002CR-MO, 10 pcMetric deepNuts on long studs, U-bolts
3/4"GDAD0801CR-MO, 8 pc26–38 mmLight trucks, agricultural and plant equipment
1"GDAD0803CR-MO, 8 pc24–41 mmTruck and bus wheel nuts, heavy plant

Each size also comes as a deep set (GDAD0807CR-MO for 3/4", GDAD0804CR-MO for 1"). For 1" work where the nut sits in a narrow recess, there is a thin-wall set, GDAD0809CR-MO. For trucks with square Budd-wheel nuts, the KABM series is a 1" four-point impact socket.

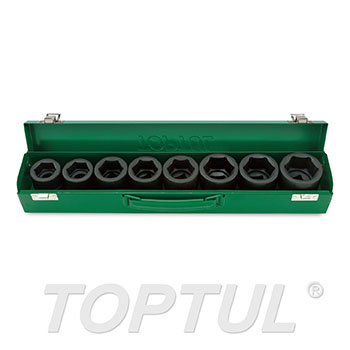

Toptul GDAD0801CR-MO 8-piece 3/4-inch drive impact socket set
Toptul GDAD0801CR-MO: eight 3/4" drive impact sockets, 26–38 mm.

All of these are six-point "flank" sockets. They grip the flat sides of the nut rather than its corners, which matters on a gun: a rounded wheel nut costs far more time than the socket did.

If you are still choosing the gun itself, read Impact wrench torque: buy on the working figure, not the max first. The sockets should match the gun you end up with.

Check the square drive on your gun, then pick the matching set from the impact sockets in the Vesprr Tools catalogue. For a size or set not listed, ask Vesprr Tools.
