Can a digital torque adapter replace your torque wrench?
Back to Blog
#digital torque adapter#torque adapter vs torque wrench#digital torque adapter accuracy#torque adapter 1/2 drive#Toptul DTA-200N#torque wrench alternative

Can a digital torque adapter replace your torque wrench?

Uzair bin Haroon

Yes, for most jobs. A digital torque adapter fitted between a ratchet and a socket reads torque to ±2% on Toptul's DTA-135N and DTA-200N, while ISO 6789 lets a click wrench be out by ±4%. What you give up is the click: you have to watch a display and stop on the beep. So keep a click wrench for tight spaces, repeat work and anything outside the adapter's range, and let the adapter do the rest.

The question is live this week because Project Farm put thirteen adapters on test at 25, 80 and 145 ft-lb and titled the video "This Torque Adapter Makes Torque Wrenches Obsolete!". It has passed half a million views in three days. This follows on from Is a more accurate torque wrench worth the money?, which recommended an adapter as the tool that checks every other wrench. Here the question is whether it can do the tightening itself.

Is the adapter's reading as good as a torque wrench's?

On paper it is better than a click wrench and close to a digital one. Toptul rates its adapters and wrenches like this:

ToolRated accuracyWhat you watch
Click wrench to ISO 6789 (e.g. Toptul ANAC)±4% clockwiseNothing: it clicks
Toptul DTA-135N / DTA-200N adapter±2% clockwise and anticlockwise (DTA-030N ±3%)Display, beep and LED
Toptul DTA torque/angle adapter±3% clockwise, ±4% anticlockwiseDisplay, plus degrees turned
Toptul DT-030N digital wrench±1% clockwise, ±1.5% anticlockwiseDisplay, beep and LED

The adapter measures torque at the square drive, so the length of the ratchet does not change the reading. A short ratchet, a long one or a breaker bar all read the same at the nut. Toptul rates the DTA-N adapters to hold that accuracy for at least 5,000 tightening cycles and certifies them to DIN EN ISO 6789.

Two habits decide whether you get that accuracy in use:

  • Pull slowly at the end. The beep tells you the target is reached; it does not stop your arm. Ease off on the last part of the swing, and use peak-hold mode so the display shows the highest torque you actually reached. If that is over target, you know straight away.
  • Keep the adapter square. Fit it straight on the socket and pull the ratchet at right angles to the bolt. A wobbling stack or a pull at an angle loads the drive unevenly.

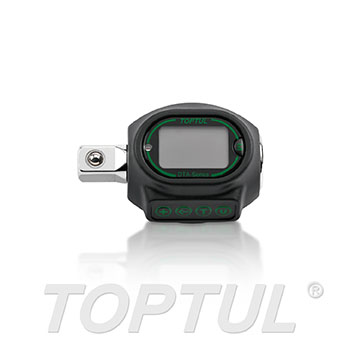

Toptul DTA-030N digital torque adapter with LCD display
Toptul DTA-030N digital torque adapter, from the Vesprr Tools catalogue.

Where should you still use a click wrench?

Wherever you cannot watch the display, or the job is outside the adapter's range.

  • Tight or blind spots. The adapter adds height to the stack and its screen has to face you. On the Garage Journal forum, a member who owns one put it this way: it is "cumbersome but you're not usually using it on tight stuff in the engine bay; more like lug nuts and suspension bolts where there is more clearance."
  • The same torque, many times. On a run of identical bolts a click wrench is faster: set it once and feel the click without looking.
  • Outside the range. The 1/2" DTA-200N reads 40–200 N·m. Heavier fasteners need a 3/4" or 1" drive click wrench, and anything under 6 N·m is below even the 1/4" DTA-030N.
  • Never on an impact gun. The adapter is a hand tool. Run the nut down with the gun, then set the final torque by hand.

The adapter runs on one CR2032 cell, rated for 50 hours, so keep a spare in the drawer.

Which adapter should you buy?

Pick the size that puts the torque you set most often in the middle of its range, not at either end.

  • DTA-030N, 1/4" drive, 6–30 N·m: small fasteners, covers and trim.
  • DTA-135N, 3/8" drive, 27–135 N·m: general engine and bay work.
  • DTA-200N, 1/2" drive, 40–200 N·m: wheel nuts and suspension bolts. Check the vehicle's own figure.

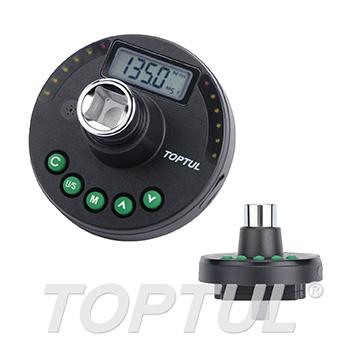

  • DTA torque/angle adapter: only if you tighten torque-to-yield bolts that are specified as a torque plus a number of degrees.

If you already own a click wrench, the adapter does not replace it. It checks it, and takes over the jobs where you can see the screen. If you own neither, one adapter on the ratchet you already have covers most of a workshop's torque work for less than a full set of wrenches.

Find the Toptul DTA digital torque adapters in the Vesprr Tools catalogue, or send Vesprr Tools the torques and drive sizes you work in and get back the adapter, and the click wrench, that covers them.
